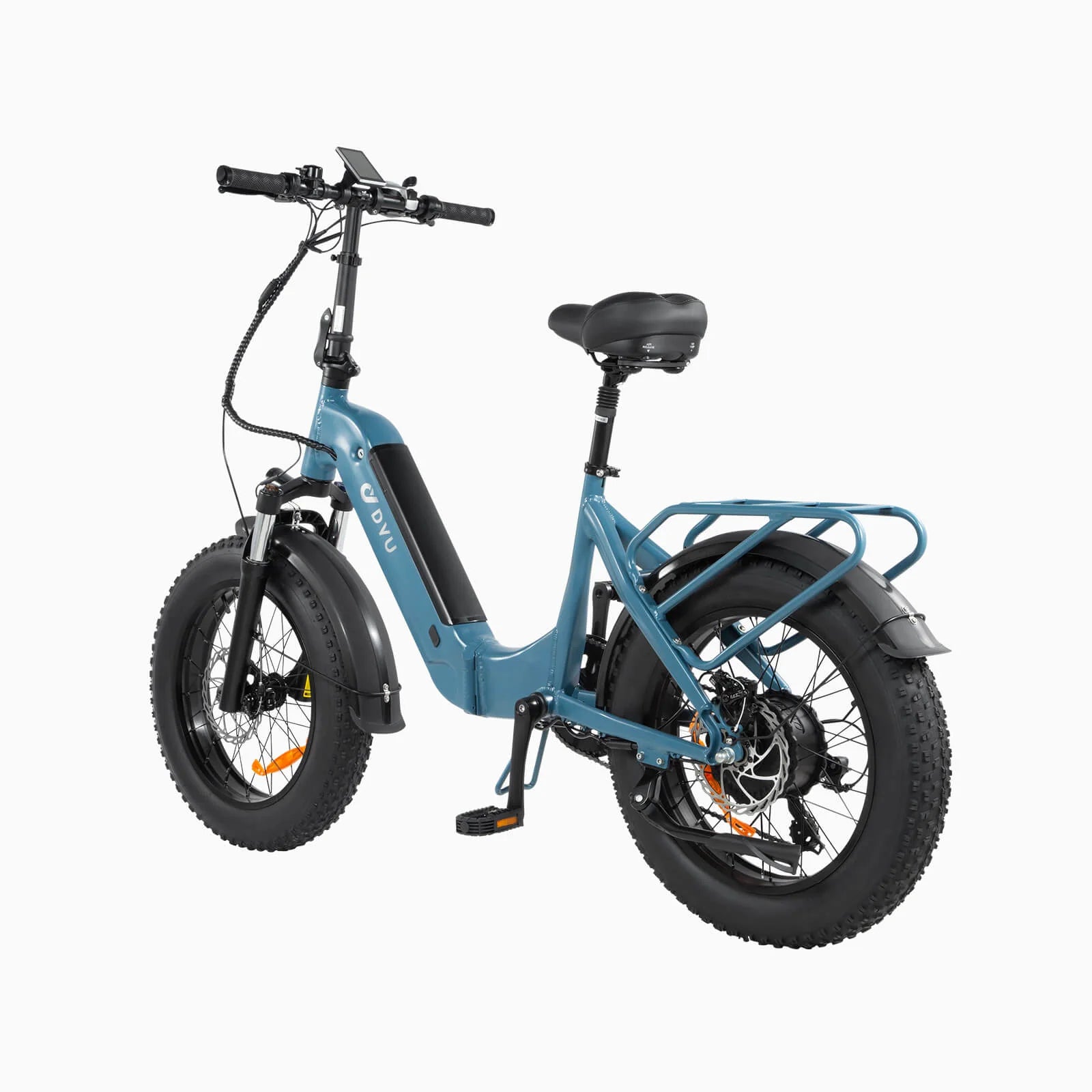

DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike
DYU FF500 20 Inch Fat Tyre Electric Bike

DYU FF500 20 Inch Fat Tyre Electric Bike

Regular price $2,699.00 Sale price $2,290.00 Save $409.00
/
Tax included.

Only 0 items in stock!

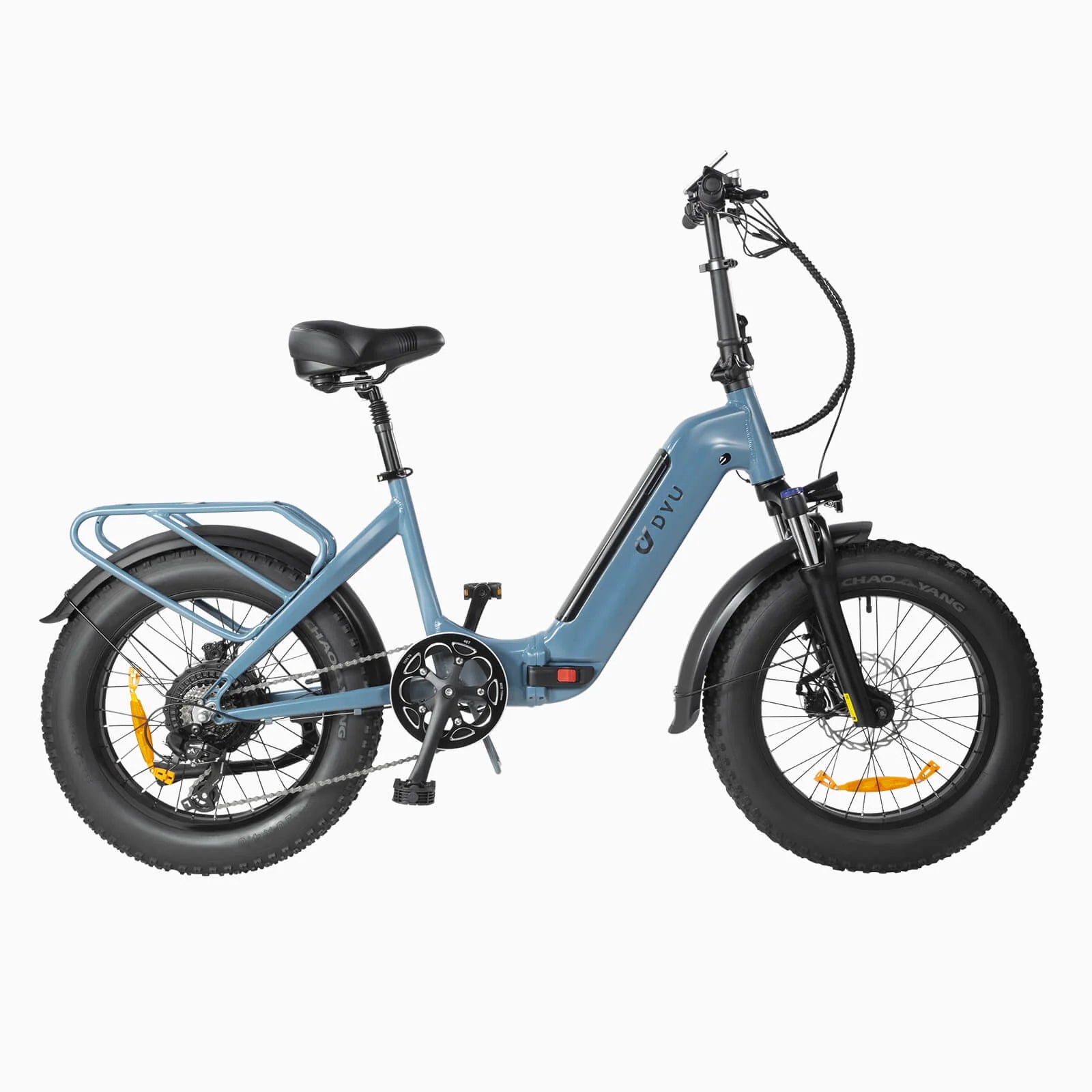

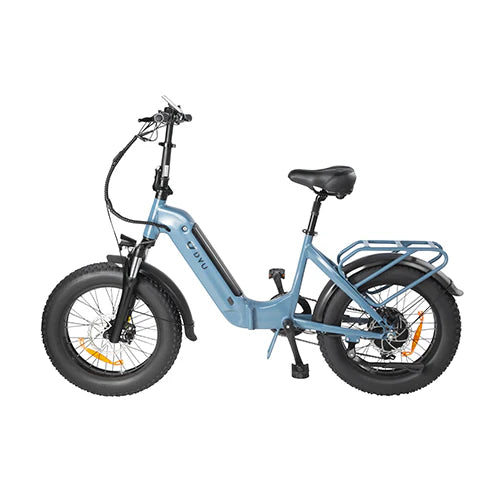

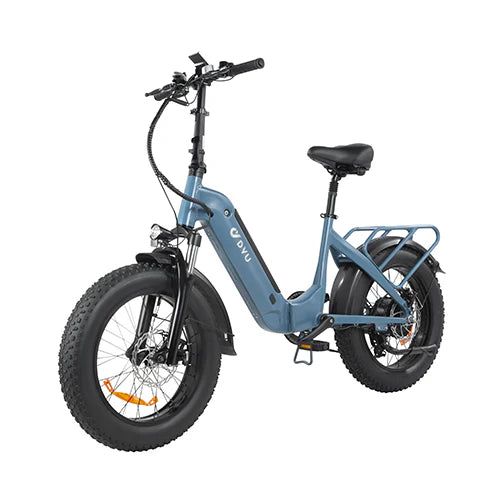

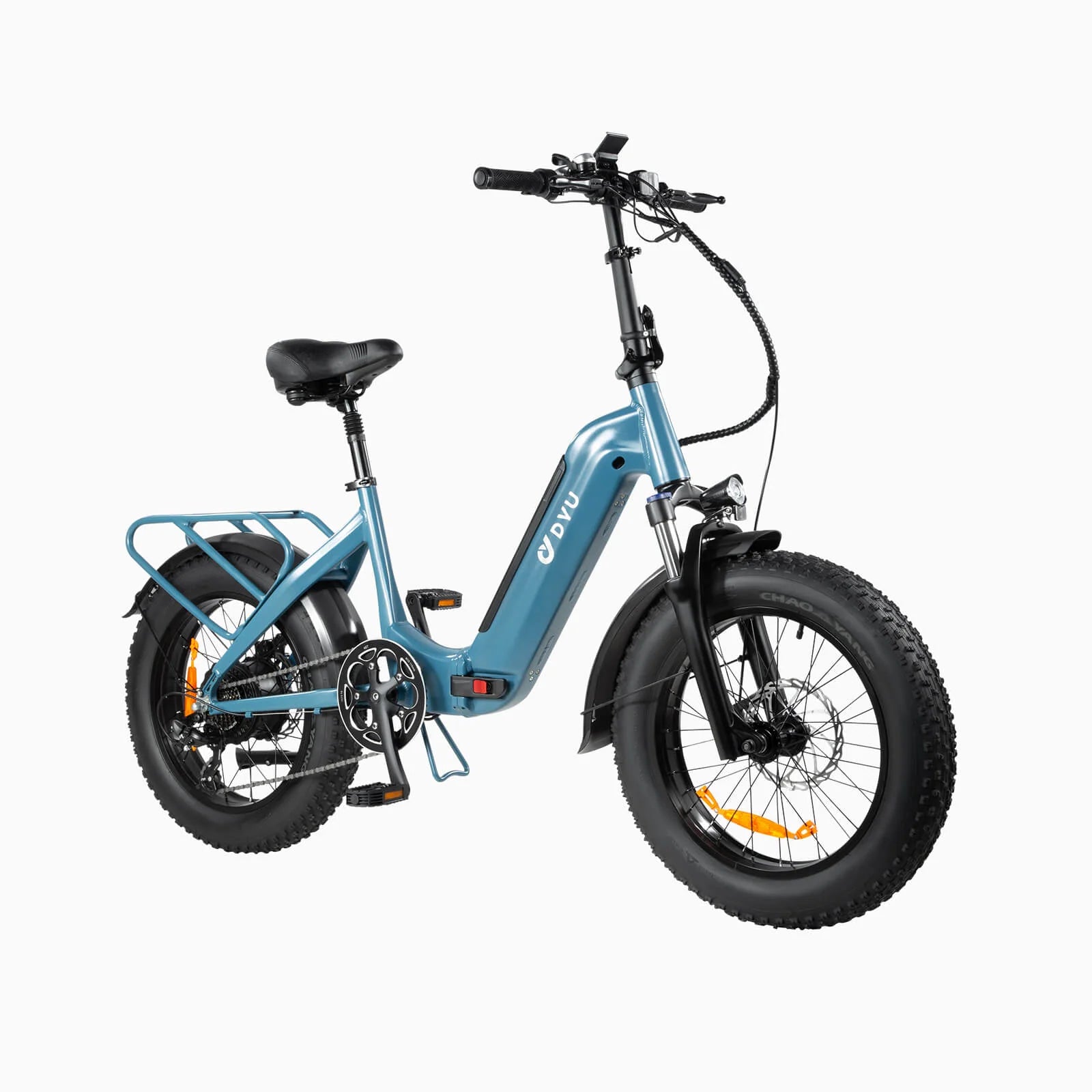

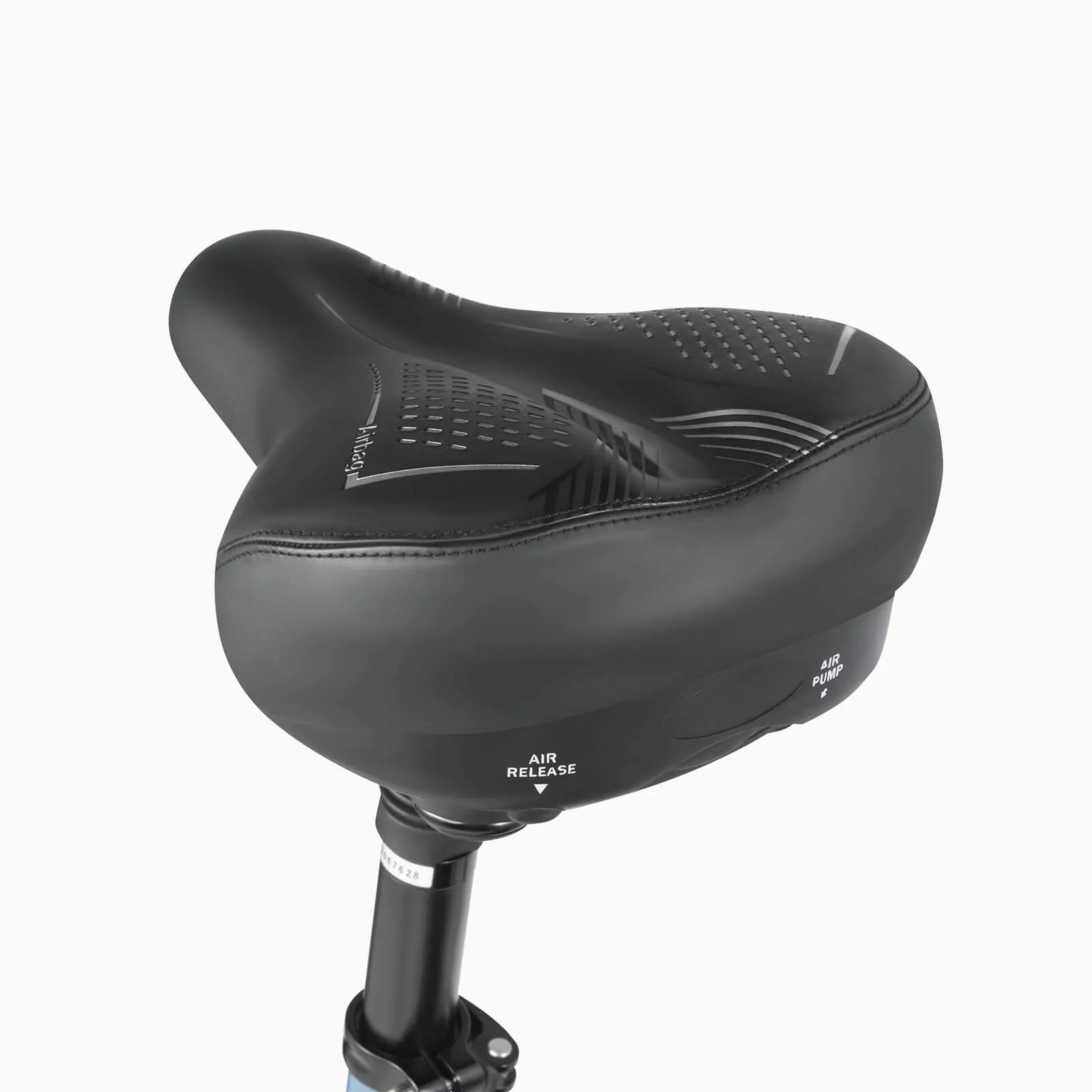

The DYU FF500 delivers an exceptional riding experience wherever you go. With four-point shock absorption—featuring an inflatable seat cushion, suspension seat post, front fork, and fat tyres—it’s designed to keep your ride smooth and comfortable across all terrains.

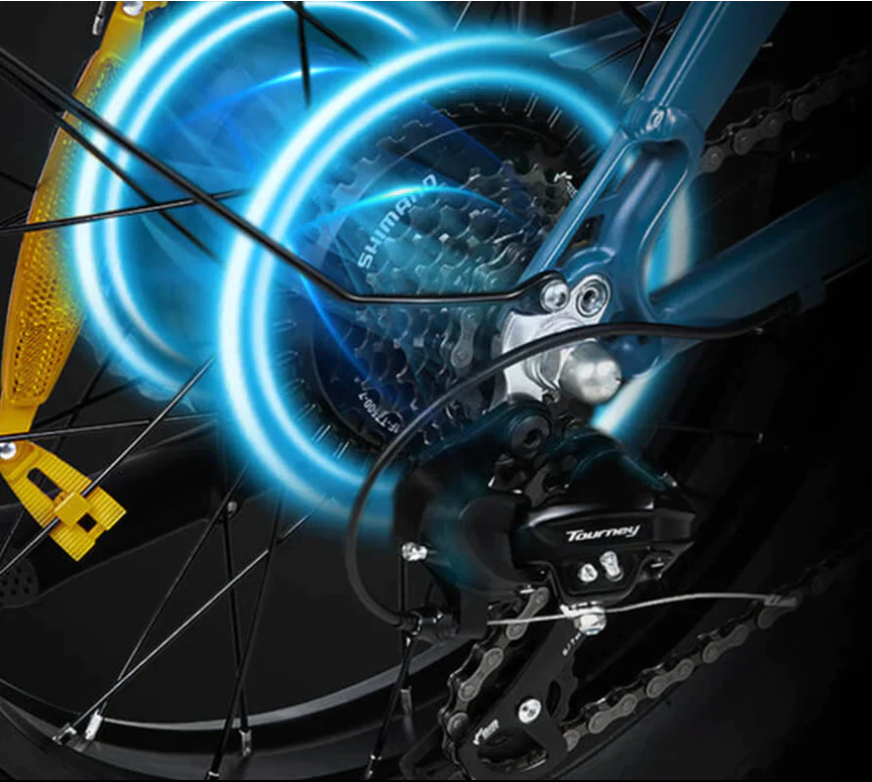

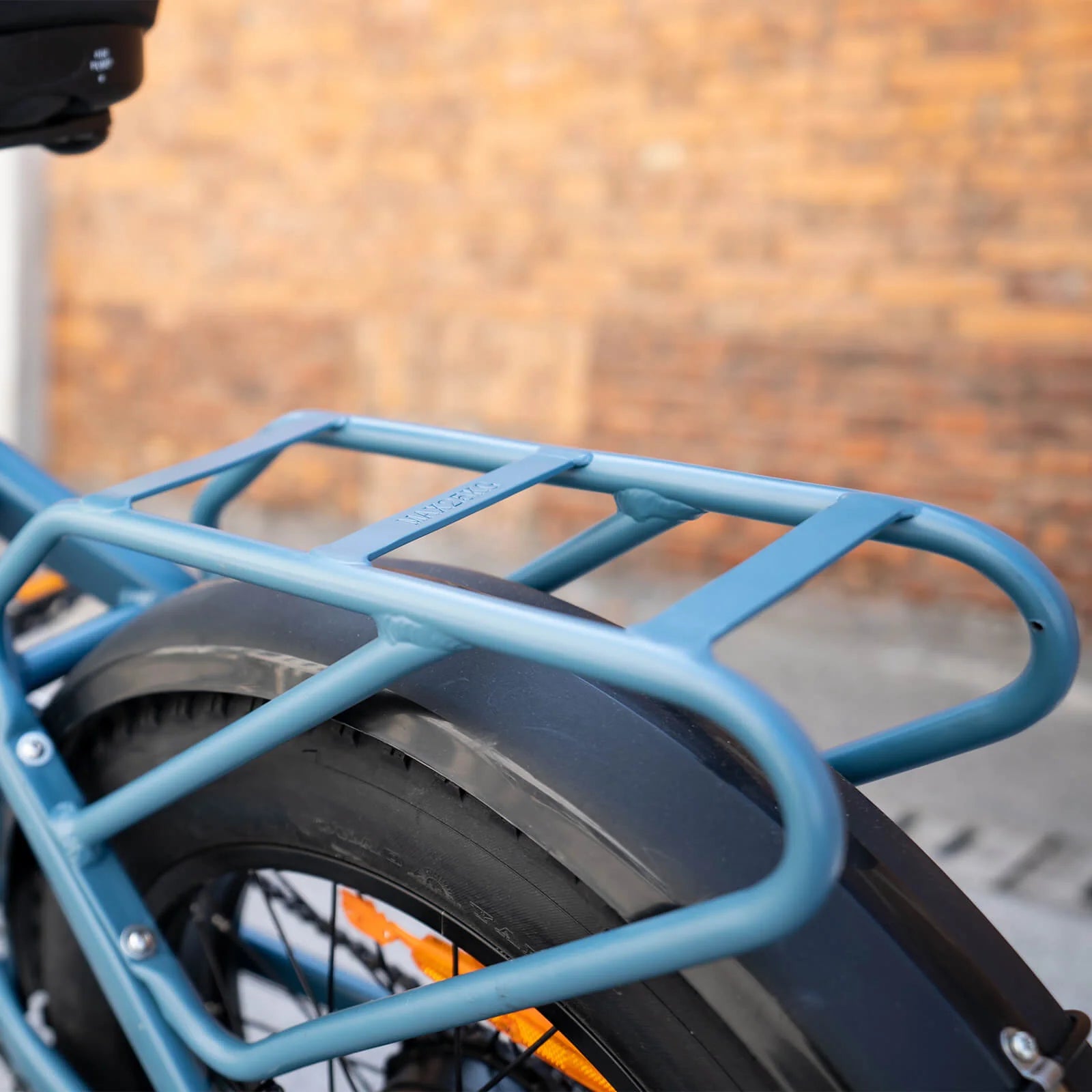

The FF500 is a powerful and versatile fat tyre e-bike built for comfort and performance. Featuring a 750W motor and a 48V 14AH battery, it offers a top range of up to 70KM. With a robust 150KG load capacity and weighing 31KG, it’s designed to handle everyday adventures with ease. The bike comes with a detachable battery, folding frame, rear rack, and Shimano 7-speed gearing—plus a large LED display for a smooth, user-friendly ride.

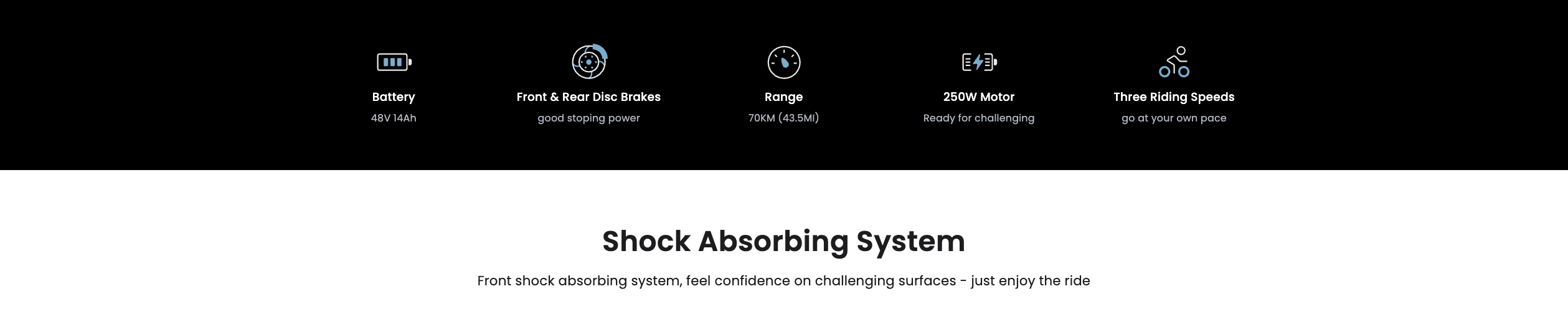

Features

  • 500W Motor
  • Maximum power of 750W
  • 48V 14Ah Battery
  • Front and Rear Disc Brakes for reliable stopping power
  • Up to 70km Range
  • Foldable design for easy transport and storage
  • Three riding speeds mode - go at your own pace

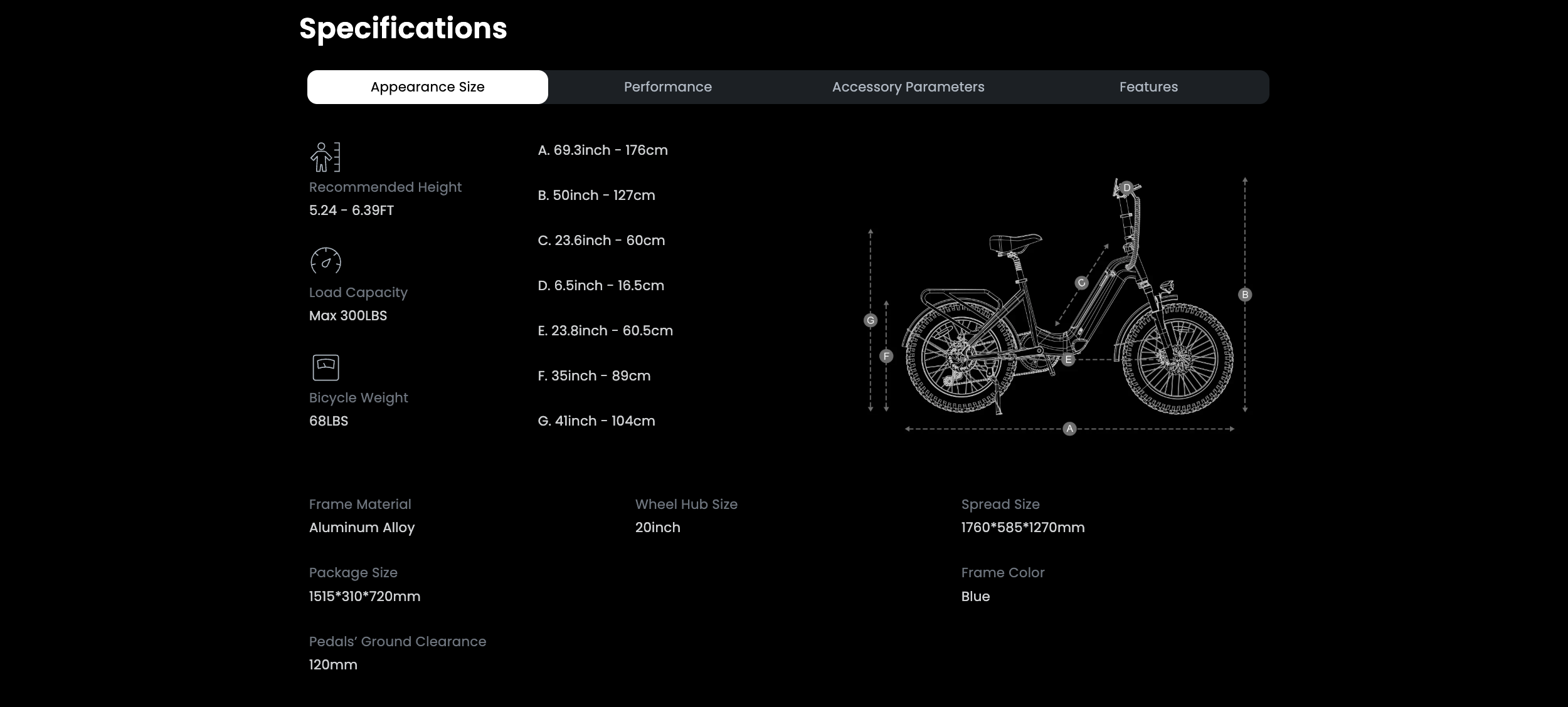

Technical Specifications

Size and Material

Frame Material: Aluminum Alloy
Package Size: 1515*310*720mm
Pedals’ Ground Clearance: 120mm
Foldable Size: 950*500*800mm
Wheel Hub Size: 20inch
Spread Size: 1760*585*1270mm
Frame Color: Blue

Performance

Weight: 31 kg
Max speed: 32 km/h
Assist Mode: Yes
Temperature: -10 to 45 ℃
Max Loading: 150 kg
Power Consumption per 100km: 1.08 KWh
Uphill Grade: 15 °
Average speed: 25 Km/h
Pure Electric Mode: Yes
Waterproof Level: IP54

Accessory Parameters

Battery Type: 18650 Lithium-ion Battery
Charging Voltage: DC54.6V
Charging Time: 7-8H
Current Limit Value: 45±1A
Motor Type: High speed motor
Battery Capacity: 14Ah
Charger Input Voltage: AC100-220V
Motor Rated Speed: 340 r/min
Battery Fuse: Yes
Battery Rated Voltage: DC48V
Motor Rated Power: 500 W
Controller Under-Voltage Value: 41±1V
Motor Rated Voltage: 48V

Features

Sensor: Speed Sensor
Brake Mode: Front and rear disc brakes
Personalized Sticker: Support
Front Light: Yes
Seat Height: Adjustable

All DYU Electric Bikes come with a 3 Year Warranty on the frame and 1 Year Warranty on electronics including battery, controller & motor.

70km

Travelling Range
LG 48V 14AH Battery

Max. Speed

32km

Max. speed

Wheel

20 inch

Wheel

High Speed Motor

500W motor paired with fat tyres, offering riders a comfortable and enjoyable ride—even across rough or uneven terrain.

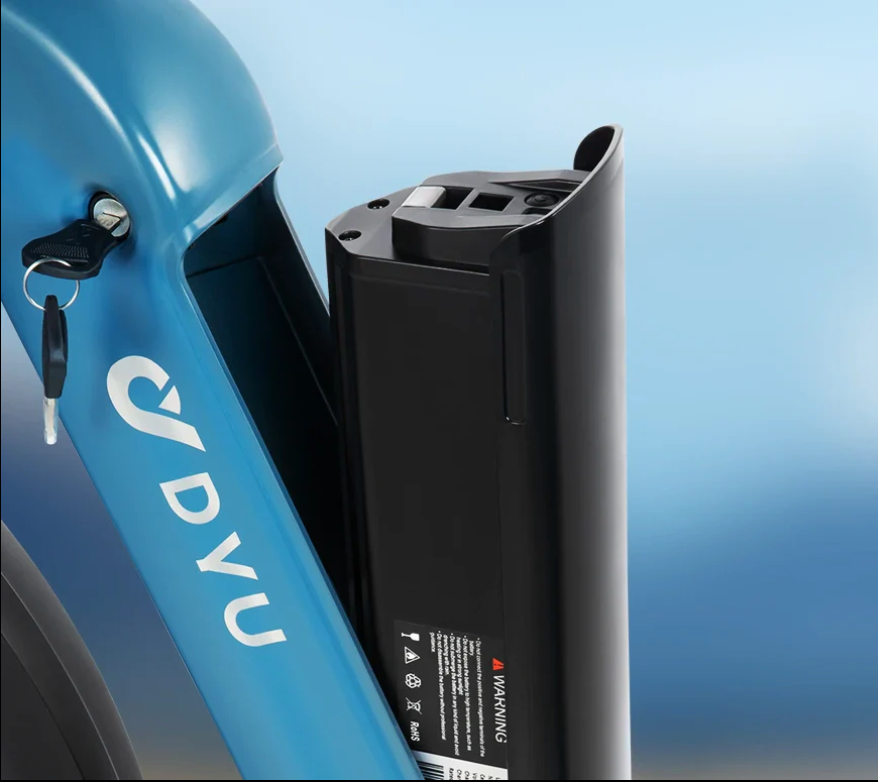

LG 48V 14AH Battery

LG battery with an integrated Battery Management System (BMS) to help conserve energy for when you need it most. The 48V 14Ah battery provides enhanced range for longer, more reliable rides.

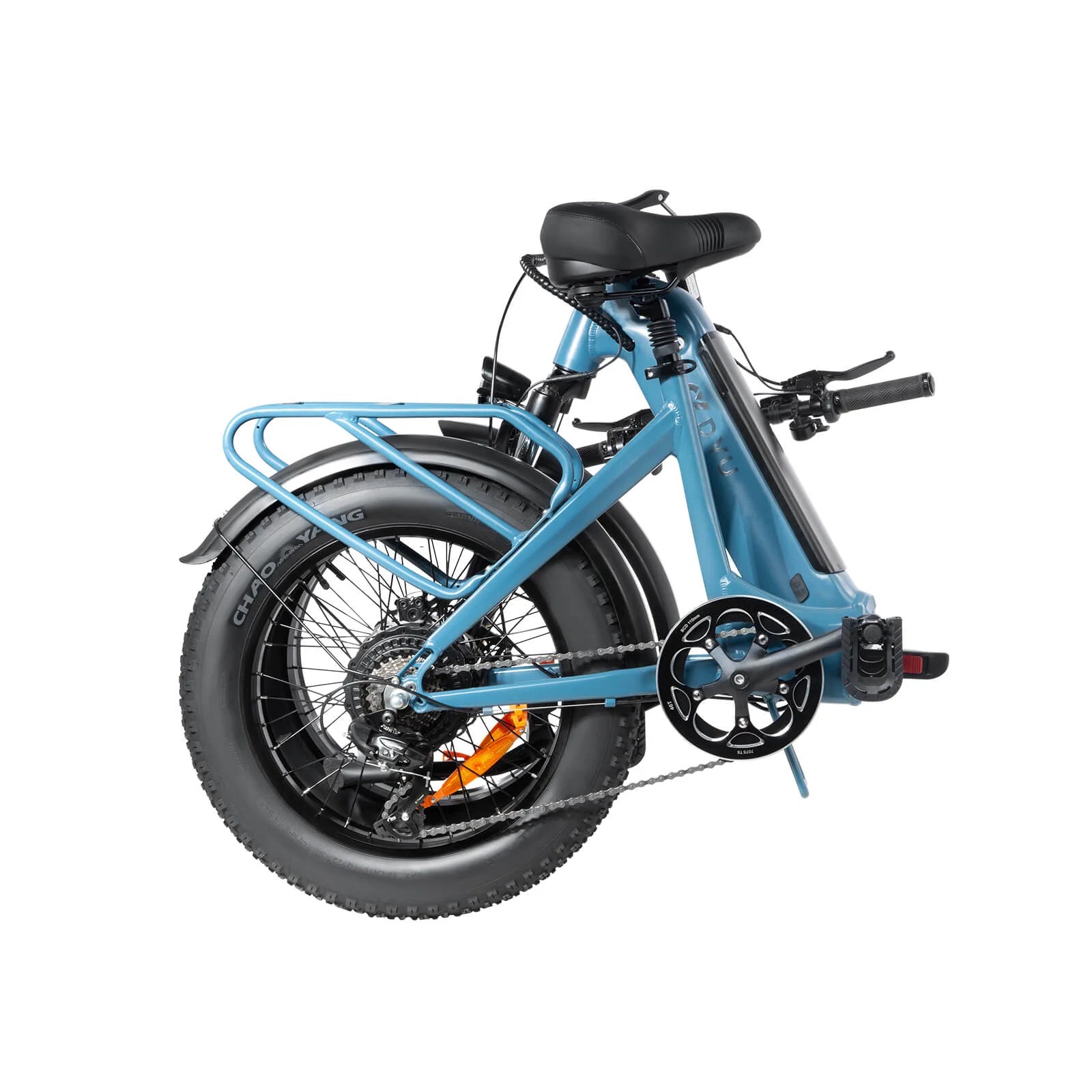

Foldable Design

The FF500 features a foldable design, making it easy to store at home or transport in your car.

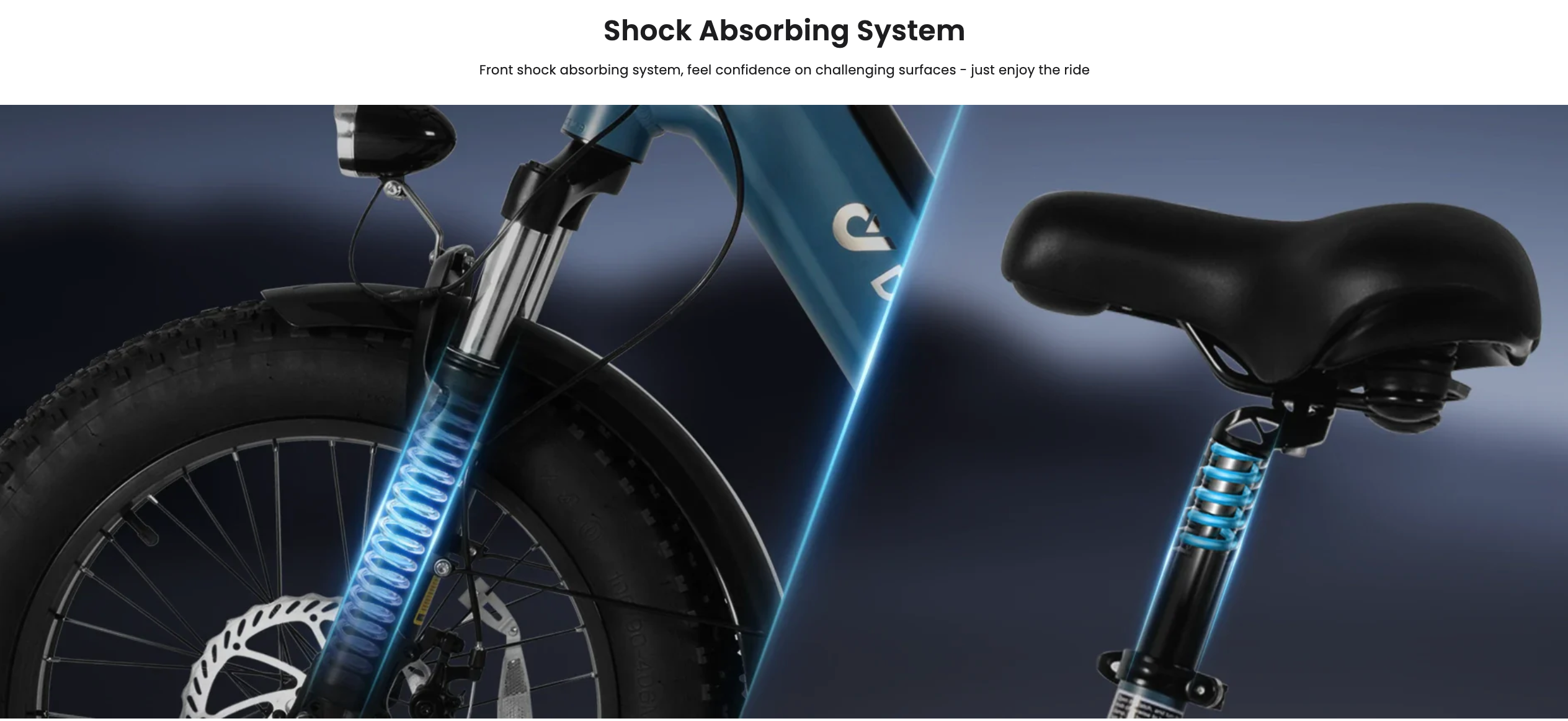

Shock Absorbing System

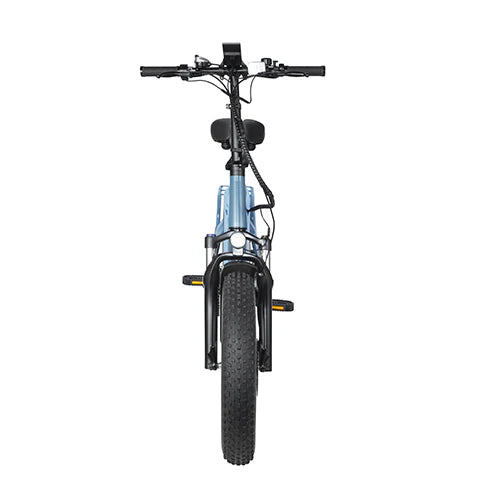

Front suspension system provides added comfort and control on rough terrain—so you can ride with confidence and simply enjoy the journey.

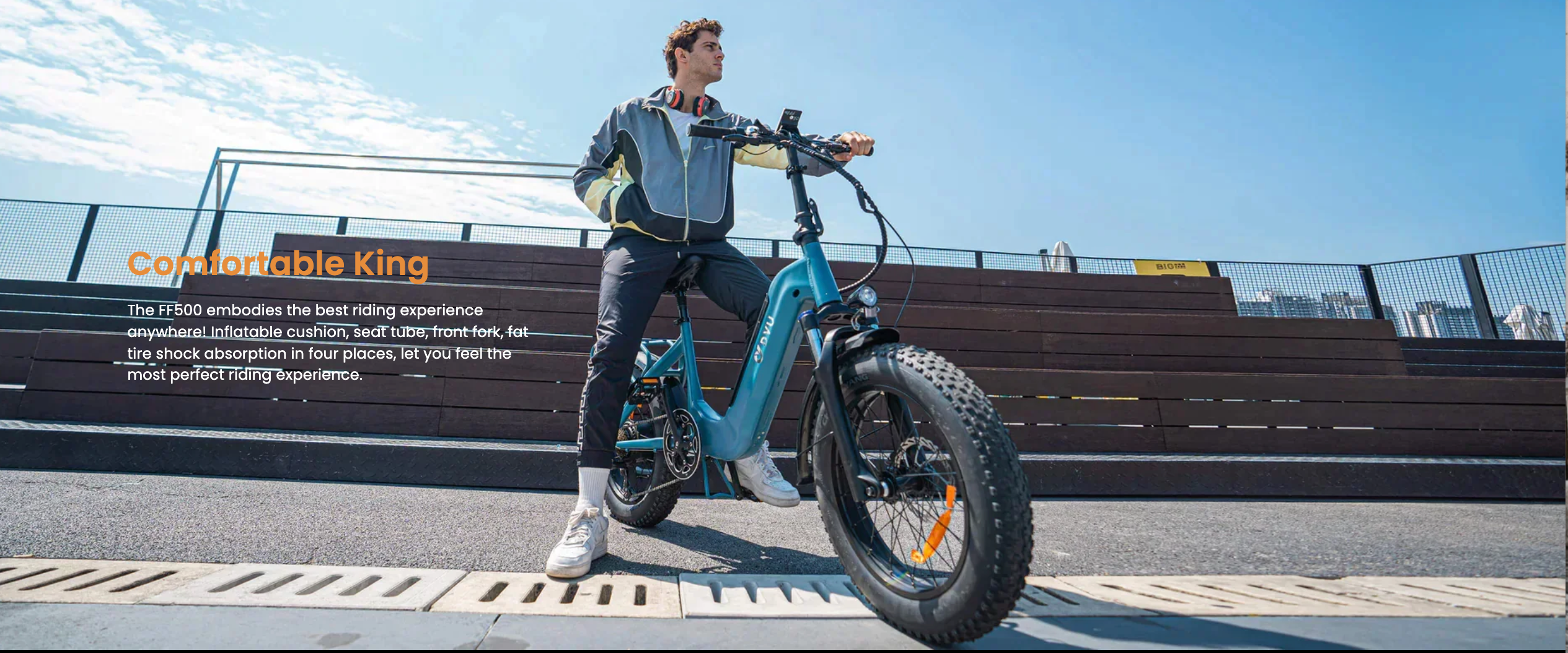

Comfortable King

FF500 Fat Tyre eBike
